H1 Elephant Park

The H1 Office will provide a new workplace destination in the heart of Elephant & Castle, an accessible and active ground plane & an exemplar office in terms of sustainability and wellbeing.

Project Details +

Project Details

LOCATION: London, UK

CLIENT: Lendlease

DATE: 2017-2025

STATUS: Planning

SIZE: 63,500m2 GIA (56,300m2 Offices, 1,700m2 Active Lobby, 1,200m2 Cycle Facilities)

Credits +

Credits

ACME: Mark Broom, Amanda Callaghan, Monica Capitanio, Blerta Copa, Stefano Dal Piva, Igor Gola, Petros Kailis, Georgia Kestekoglou, Ohyun Kwon, Friedrich Ludewig, Eleni Meladaki, Matteo Modenese, Lucy Moroney, Daniel Ovalle Costal, Ioana Petkova, Simone Piacenti, Heidrun Schuhmann, Gemma Serra, Penelope Sperbund, Thomas Soo, Jack Taylor, Luca Tesio, Boni Yuen, Keigo Yoshida


CONSULTANTS

Structural Engineer: Robert Bird Group

Planning Consultant: DP9

MEP, Energy & Sustainability: Hurley Palmer Flatt

Landscape Architect Building: Spacehub

Landscape Architect Public Realm: Gillespies

Inclusive Design: Lord Consultants

Transport, Waste & Utilities: Buro Happold

Quantity Surveyor: Gardiner & Theobald

Facade Access & Acoustics: Hoare Lea

Fire Engineering: OFR

Building Control: MLM

Facade Engineer: Thornton Tomasetti

Daylight & Sunlight: GIA

Townscape: Tavernor

Environmental Impact: Avison Young

Microclimate: RWDI

Ecology: Tyler Grange, Greengage

The demolition of a 1970s brutalist housing estate in London’s Southwark created a 28 acre regeneration site, vacant except for a number of beautiful mature trees. These trees form the core of Elephant Park, a new green space at the centre of a new mixed use quarter. The final building plot in the masterplan has been set aside to create a workplace of the future, on the doorstep of Elephant Park.

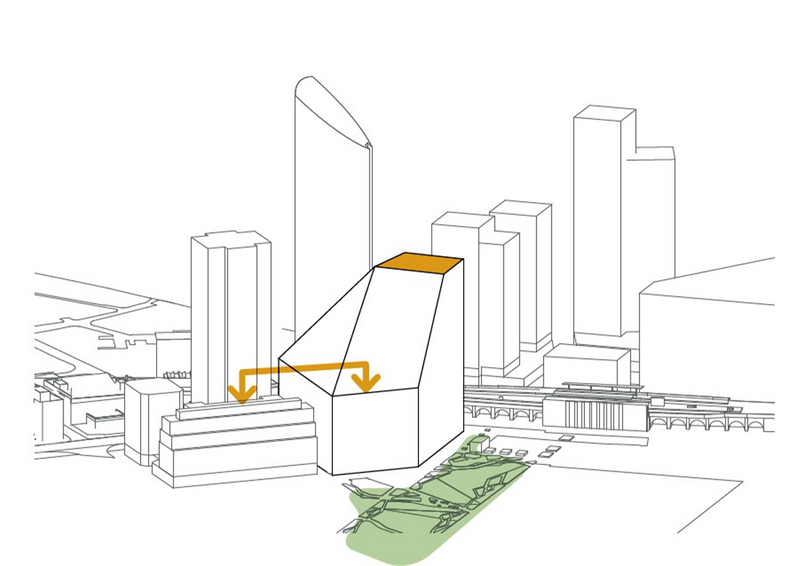

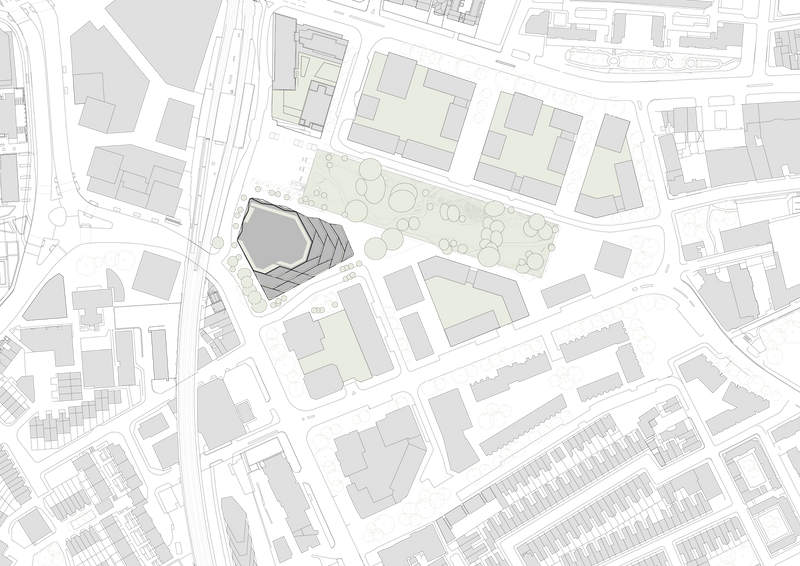

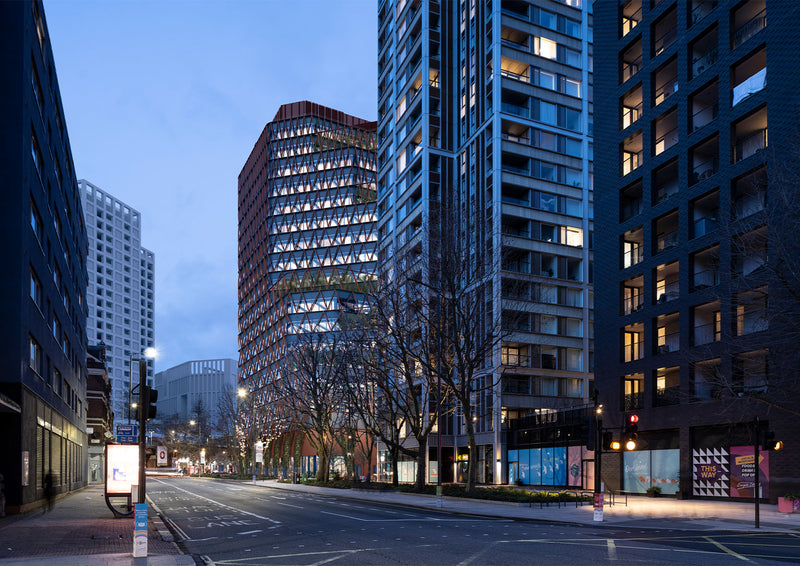

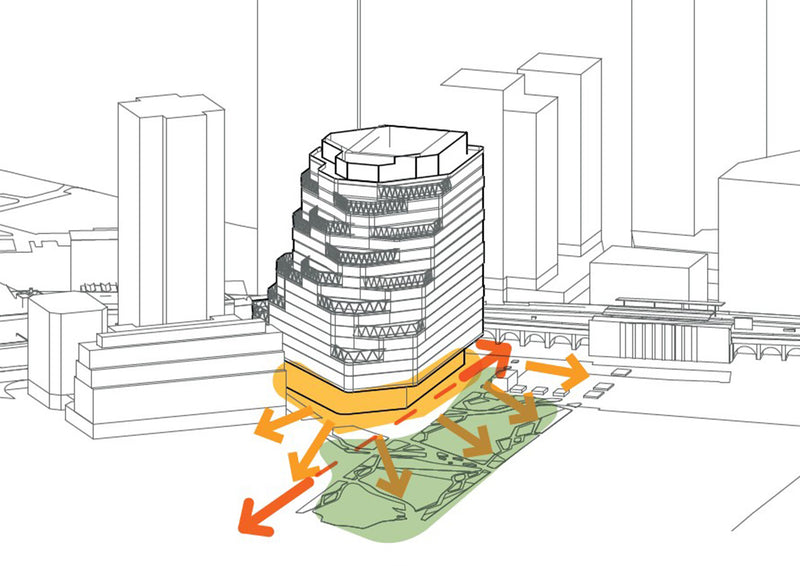

Relationship of height to surrounding buildings and context

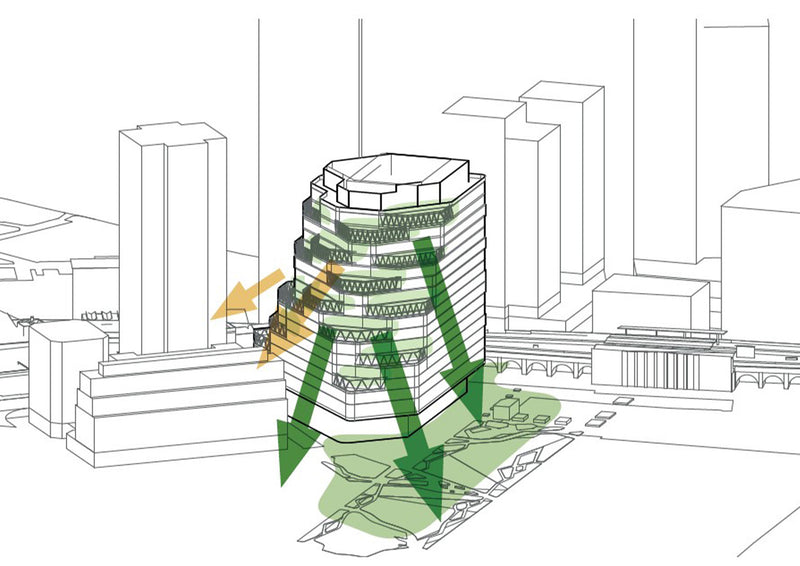

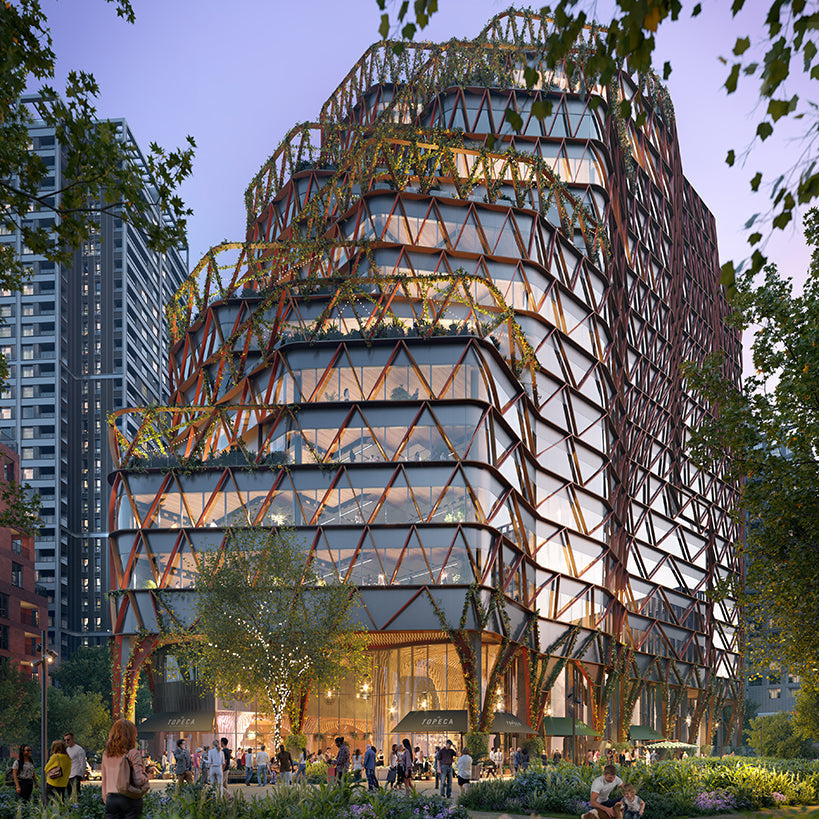

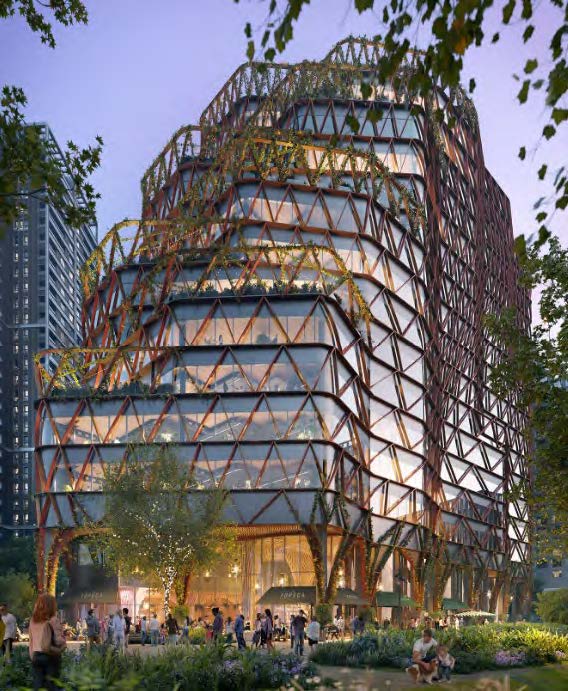

Terraces stepping down to adjacent Elephant Park

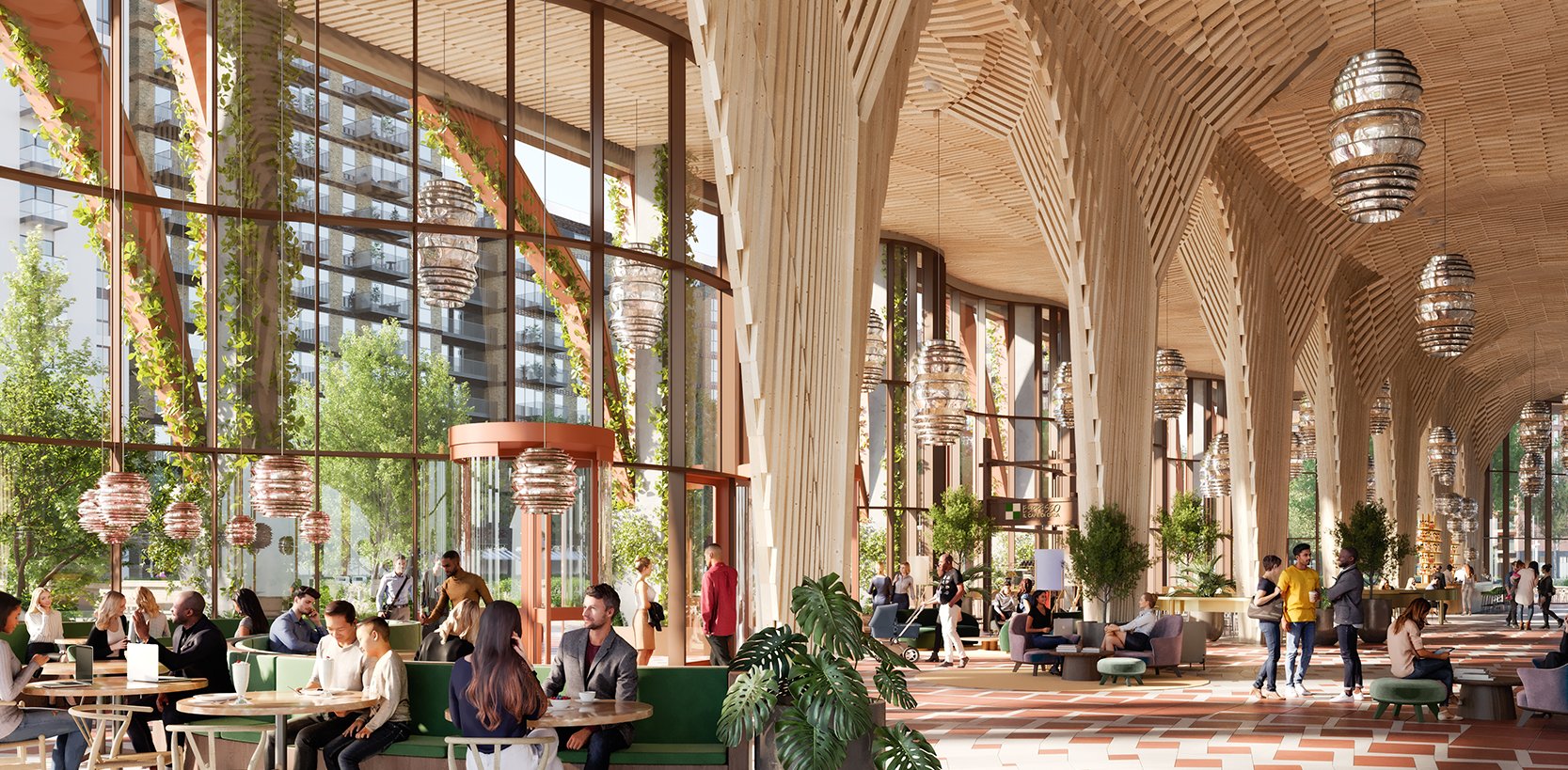

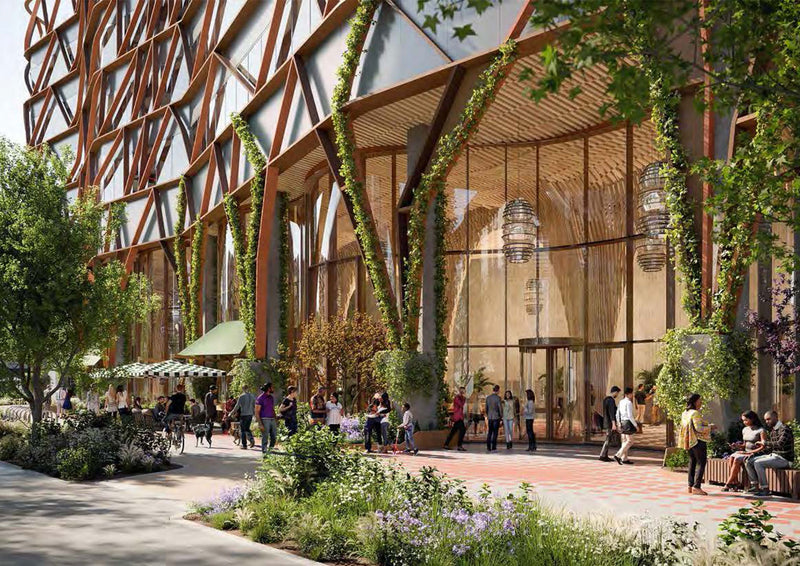

Active Ground Plane

New office buildings should be low carbon, embracing landscape and outside spaces on every level with simple, low-tech building services that will age well and allow for future change. In order to provide south-facing outdoor gardens at every level, the H1 building has been shaped as a steeply terraced volume. A shared ground floor space accommodates an open lobby, cafes, affordable workshops and event spaces - blurring the edges of foyer and landscaped park.

Michael Faraday

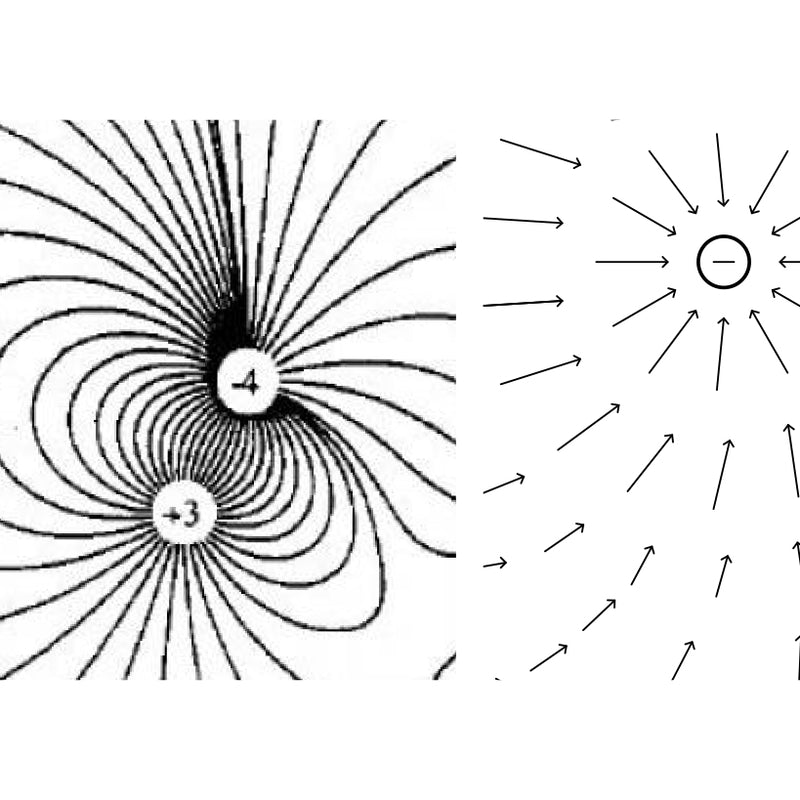

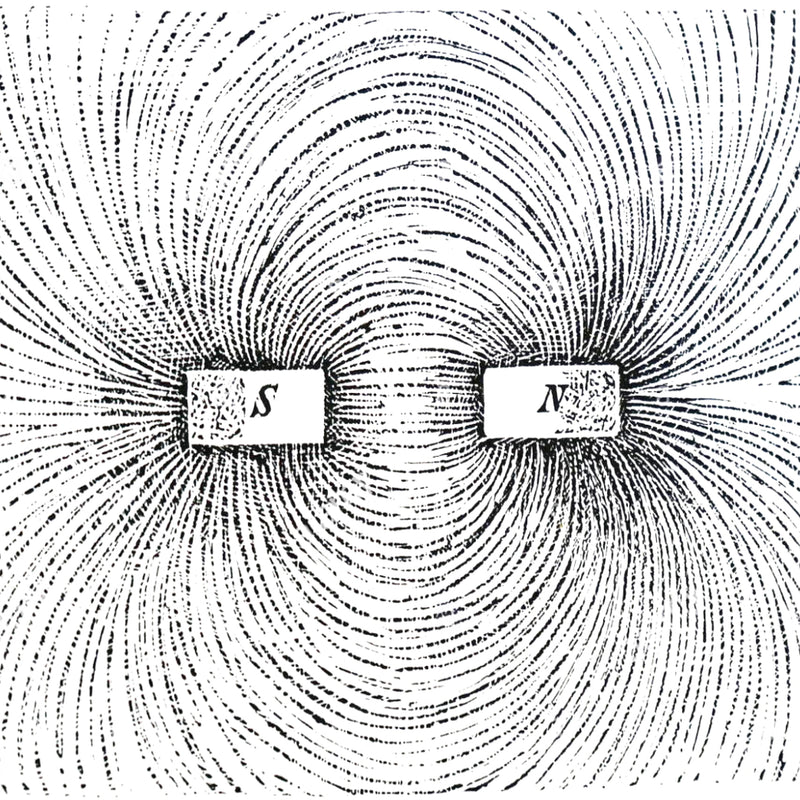

Line of electromagnetic fields

Electromagnetism - attractors

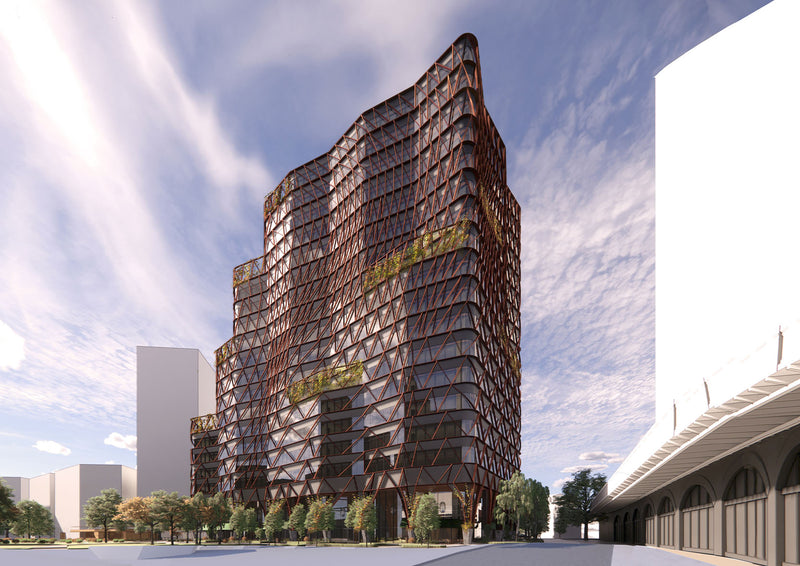

Faraday Facade

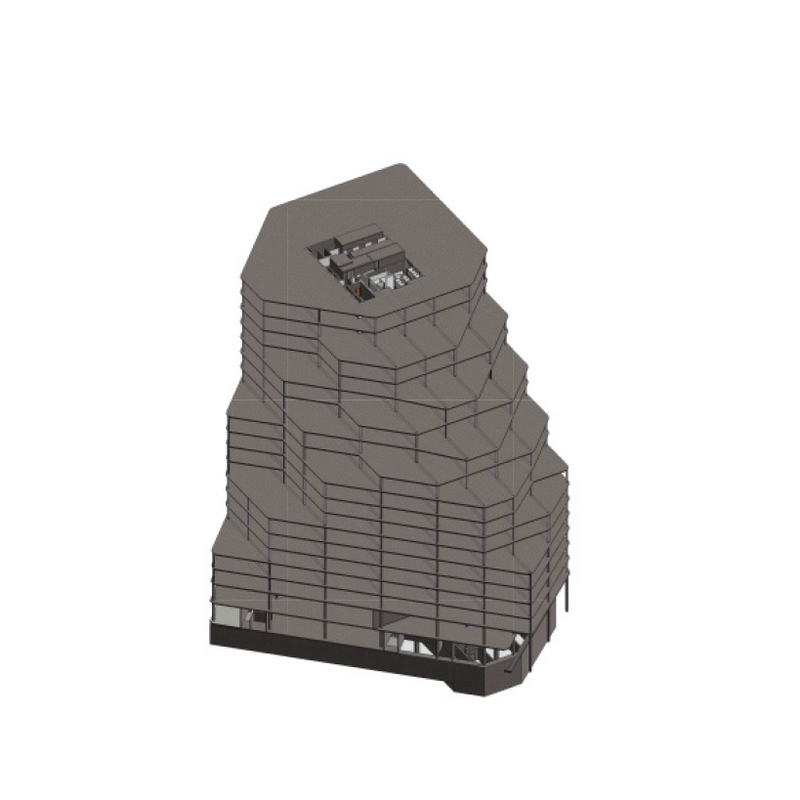

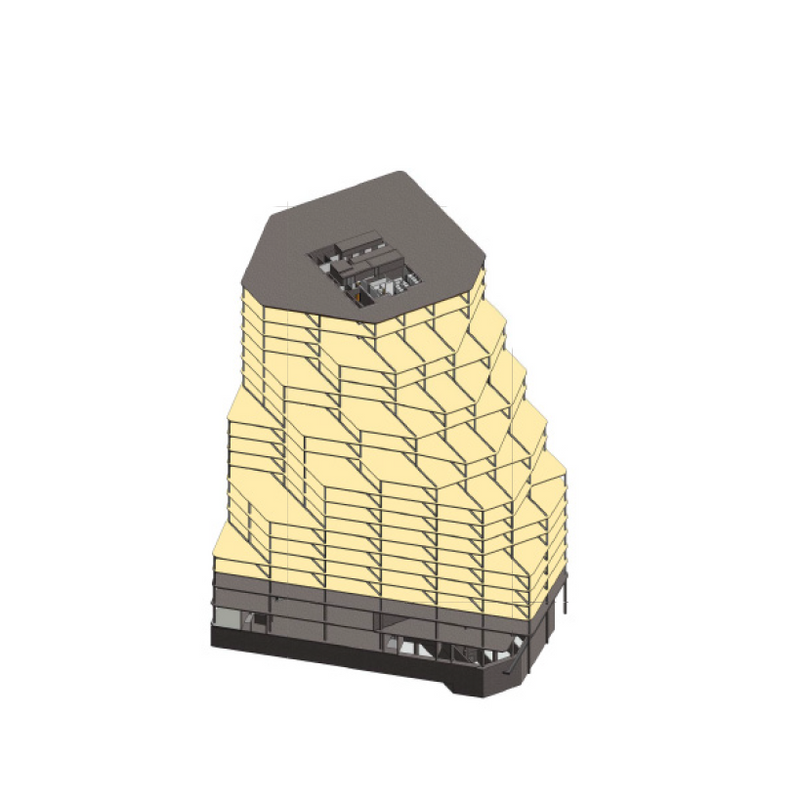

The 17 storey structure of the building is designed as a hybrid timber-steel frame. Sizing of the structural components and a sprinkler system allow timber beams and slabs to remain exposed safely, creating a contemporary timber warehouse of the future. The hybrid timber-steel frame, shading facade, green terraces and highly optimised building services are creating a 21st century green building with minimum carbon in construction and zero carbon in use.

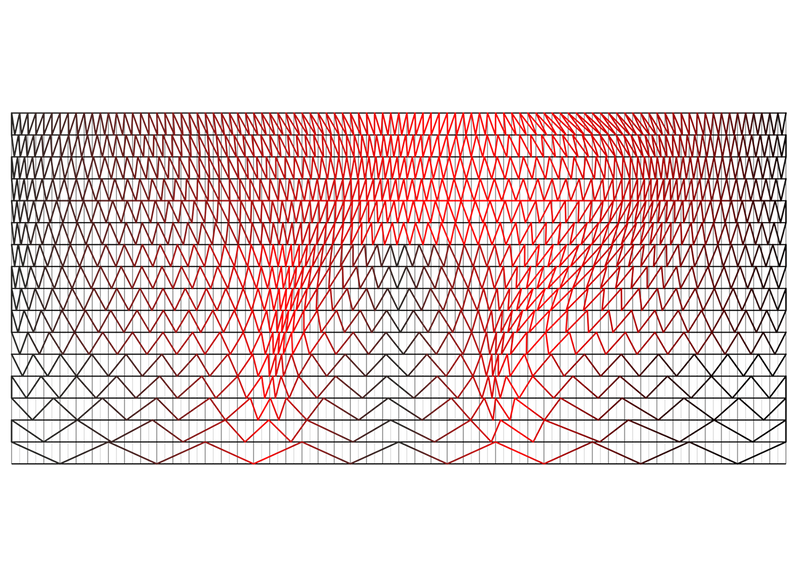

Facade Typology Rationalisation

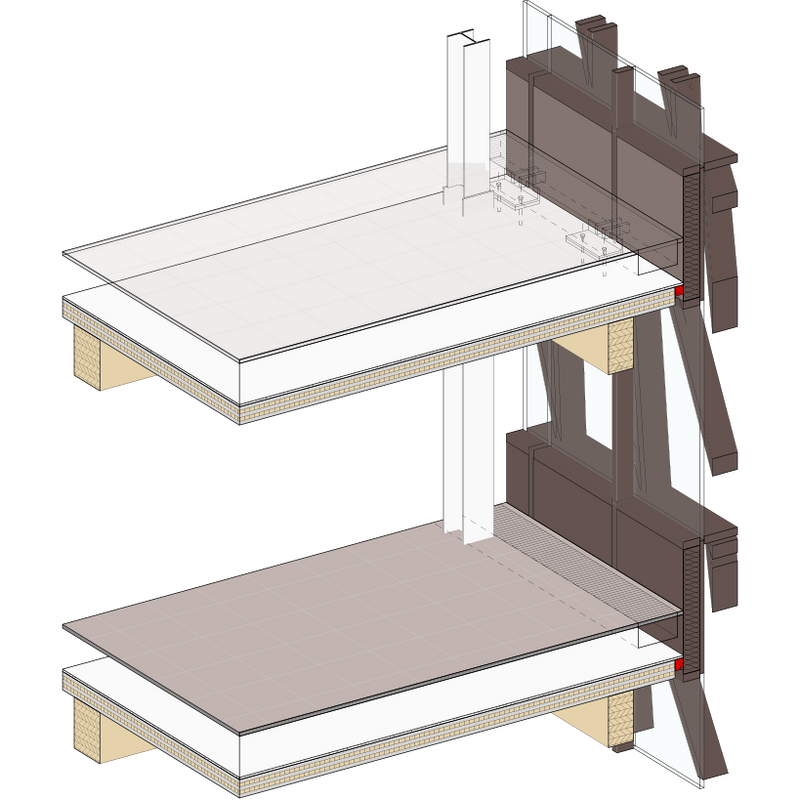

Typical Connection Details - Axonometric

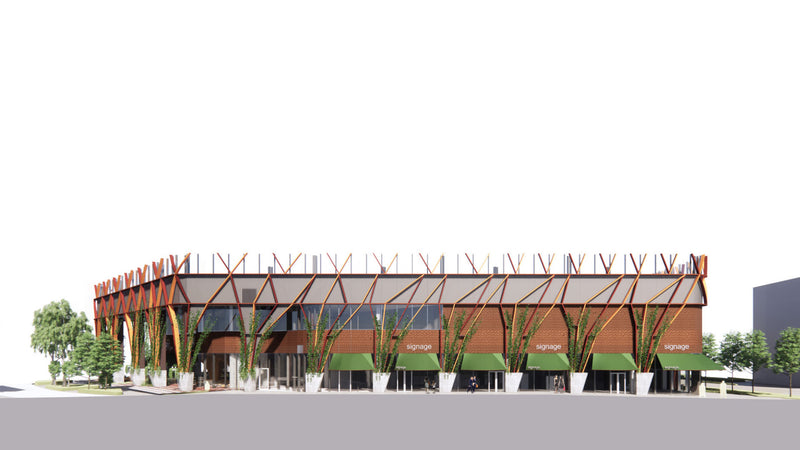

Elevation of Sayer Street Ground Floor

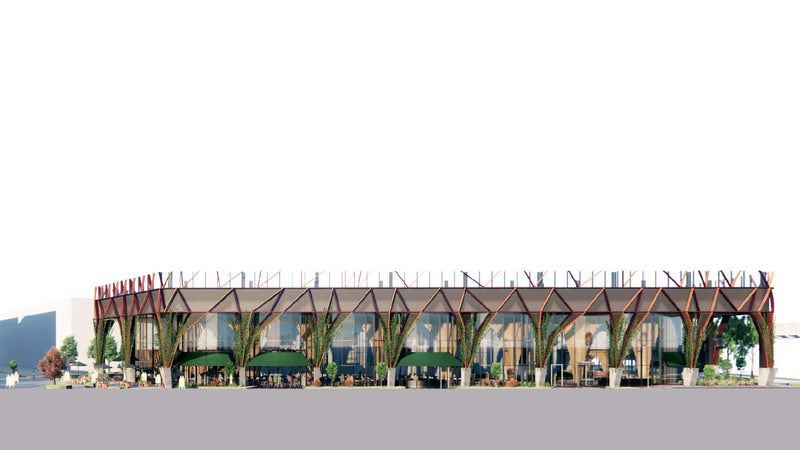

Elevation of Walworth Road Ground Floor

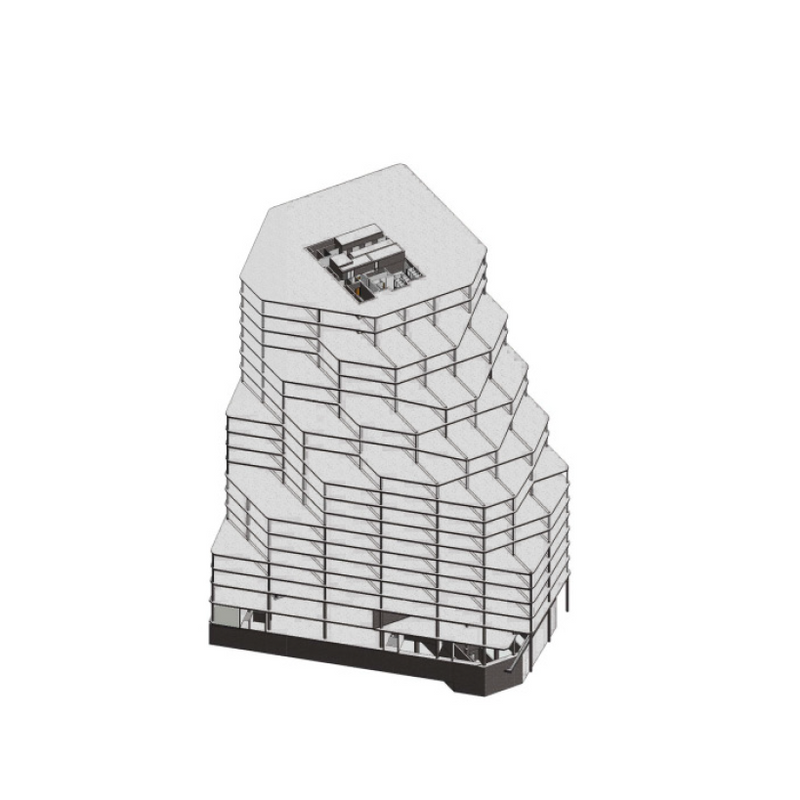

Full Concrete Frame

Composite Steel/RC

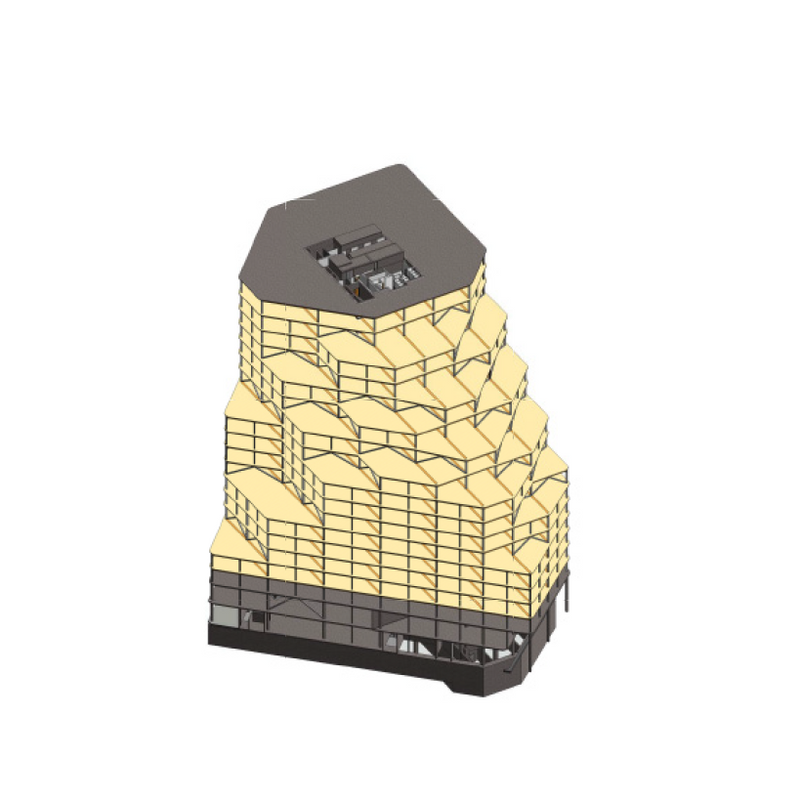

Steel/CLT

Glulam/CLT

Articles

AJ 12.2023

Related Projects

Nollendorfplatz

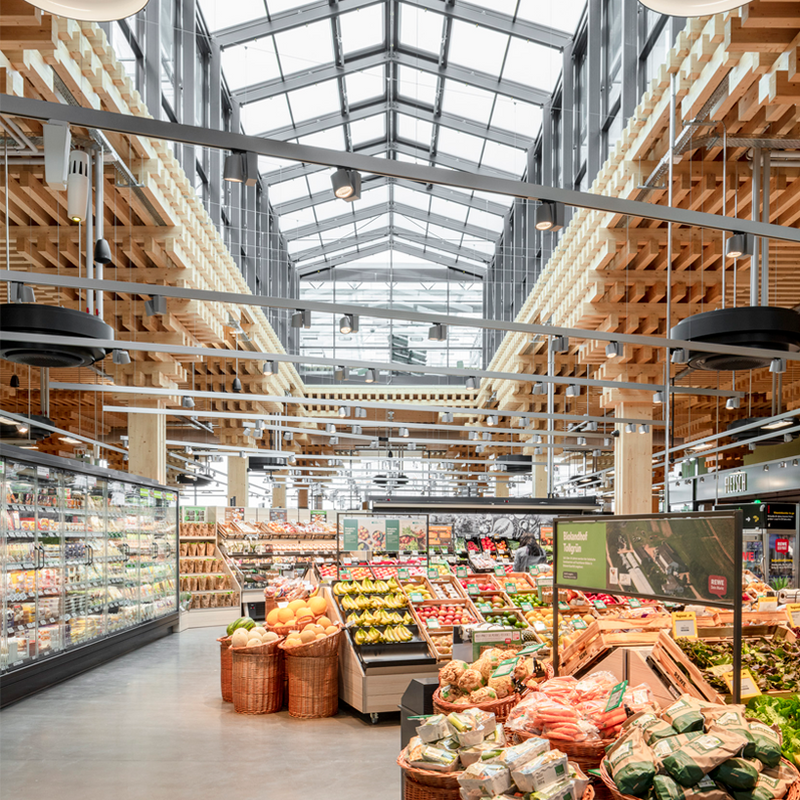

REWE Green Farming
